Round Nuts

Round-Nuts

Round nuts have a rounded shape and are internally threaded fasteners with slots, radial holes, or knurled edges on the outer surface that can be used to tighten or remove the nut with a one-piece screwdriver, hook wrench, or C-wrench. Round nuts are often used in conjunction with bolts or shafts to fasten parts, and are used in narrow scenarios with high precision and low stress requirements.

  • SGS professional testing
  • High salt spray process
  • High temperature resistance
  • Acid and alkali resistant
  • No color change
  • Ageing resistant
  • Stable surface process
Inquiry

Specifications

  • Customizable sizes: M1 to M160.
  • Customizable threads: Right-hand thread, left-hand thread, coarse thread, fine thread.
  • Customizable materials: A3/Q235 carbon steel, 45# steel/medium carbon steel, 30CrMo hardened, 42CrMo hardened, etc.
  • Threads: UNC thread, UNF thread, ISO thread, Metric thread, Imperial thread, Full thread, Half thread, Coarse thread, Fine thread.
  • Strength grades: 04, 05, 5, 6, 8, 10, 12.
  • Material: Carbon steel, Alloy steel, Stainless steel, Titanium alloy, Brass.
  • Surface Treatment: HDG, Black oxida, Dacromet, Anodizing, Colored zinc, Natural color.
  • Packing: Small Box + Carton +Pallet, Custom Packaging Service.

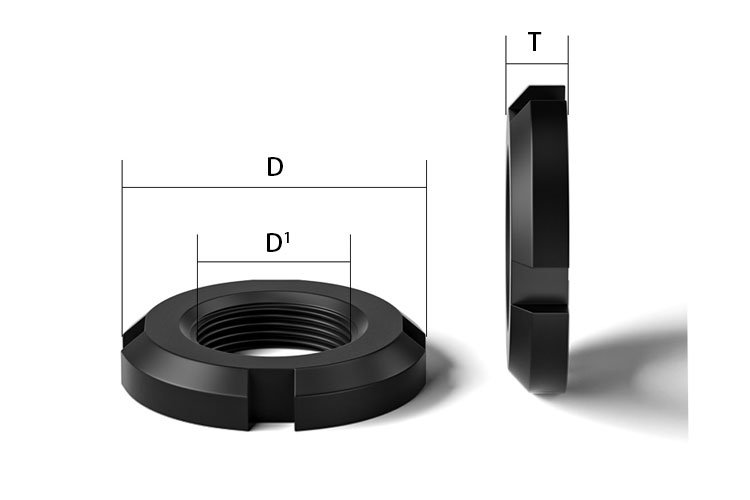

round nuts dimensions

What Standards Are There for Round Nuts?

DIN 467DIN 547DIN 981DIN 82013DIN 16903-1DIN 16903-2
DIN 1816DIN 546DIN 548DIN 466DIN 16903-3DIN 16903-4
DIN 6303DIN 1804DIN 703DIN 70852CNS 4662-1CNS 4662-2
CNS 4433CNS 4434CNS 4465CNS 4432CNS 4663-1CNS 4663-2
JIS B 1119-3BS 4185-1-1BS 4185-1-2GB/T 817CNS 4664-1CNS 4664-2
GB/T 812GB/T 809GB/T 810JB/ZQ 4328CNS 4665CNS 4729
GB/T 9160.2-1GB/T 9160.2-2GB/T 815MS 3214MS 3359PN 82463
GB/T 9160.2-3GB/T 9160.2-4MS 19067-1PN 82464GB/T 9160.2-5MS 19067A

Types

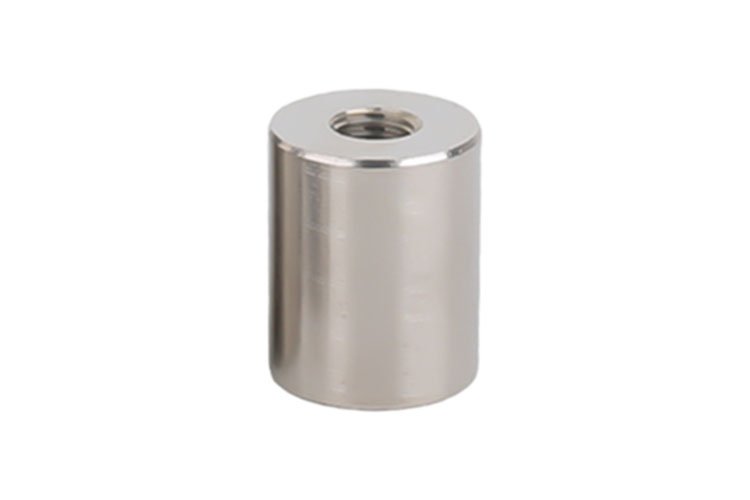

Cylindrical nut

Cylindrical Nut

Inquiry

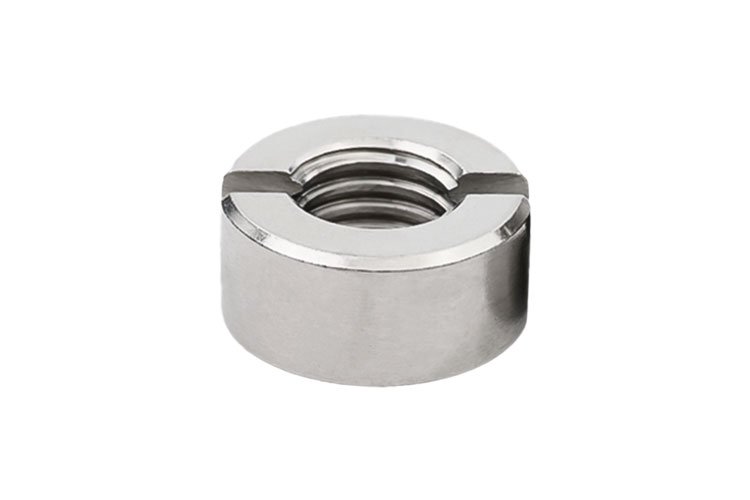

Slotted Round Nut

Slotted Round Nut

Inquiry

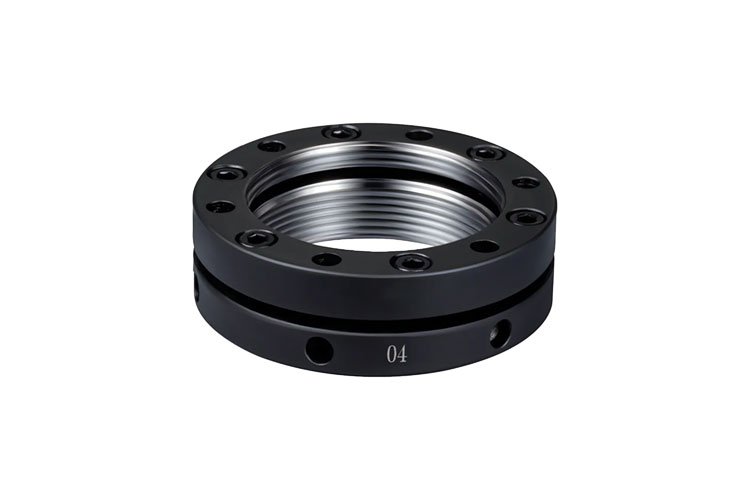

Lock-Round-Nut

Locking Round Nut

Inquiry

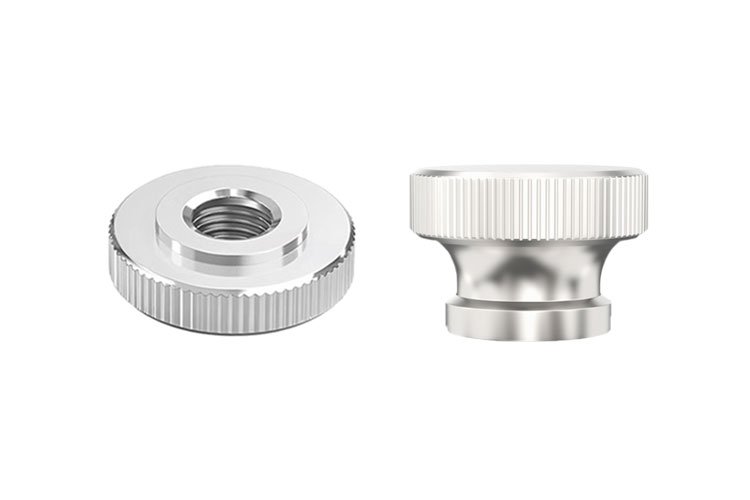

Knurled Round Nut

Knurled Round Nut

Inquiry

Applications

  • Machinery manufacturing: bearings, gears
  • Electronic equipment: optical instruments, measuring equipment
  • Automotive industry: gearboxes, steering systems
  • Pipelines: petrochemical pipelines, water treatment equipment
  • Furniture: decorative parts
  • Energy: wind power generation, nuclear power equipment
  • Aerospace: navigation systems, engines

FAQ Guide

Aesthetically pleasing, easy to rotate for installation, and suitable for specific space-constrained scenarios.

Turning, forging or cold heading.

Use special round nut wrench (hook wrench or pin wrench) to align the groove to loosen. If there is no special tool, use an adjustable wrench or pipe wrench to tighten the outer edge and twist it; if the nut is rusty, spray loosening agent first, and if it is stubborn, use a punch against the edge and hammer it counterclockwise to knock it loose. In extreme cases, the nut can be cut by angle grinder or destroyed by electric drill.

Round nuts are designed with anti-loosening slots or with lock washers, pins, etc. to prevent loosening.

They can be reused, but the threads need to be checked for wear or deformation.

316 has better corrosion resistance for marine environments, 304 offers better cost performance for general use.
